Mechanical + Piping Design

Valve Tree

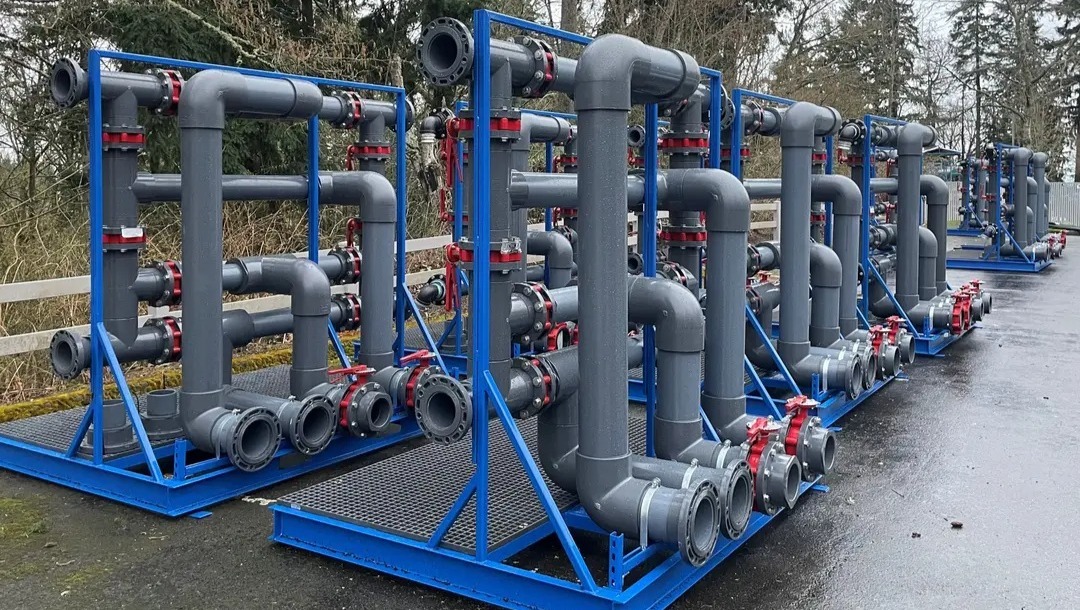

Below are manufacturing drawings of a valve tree I designed the skid and plumping for.

Treatment Columns

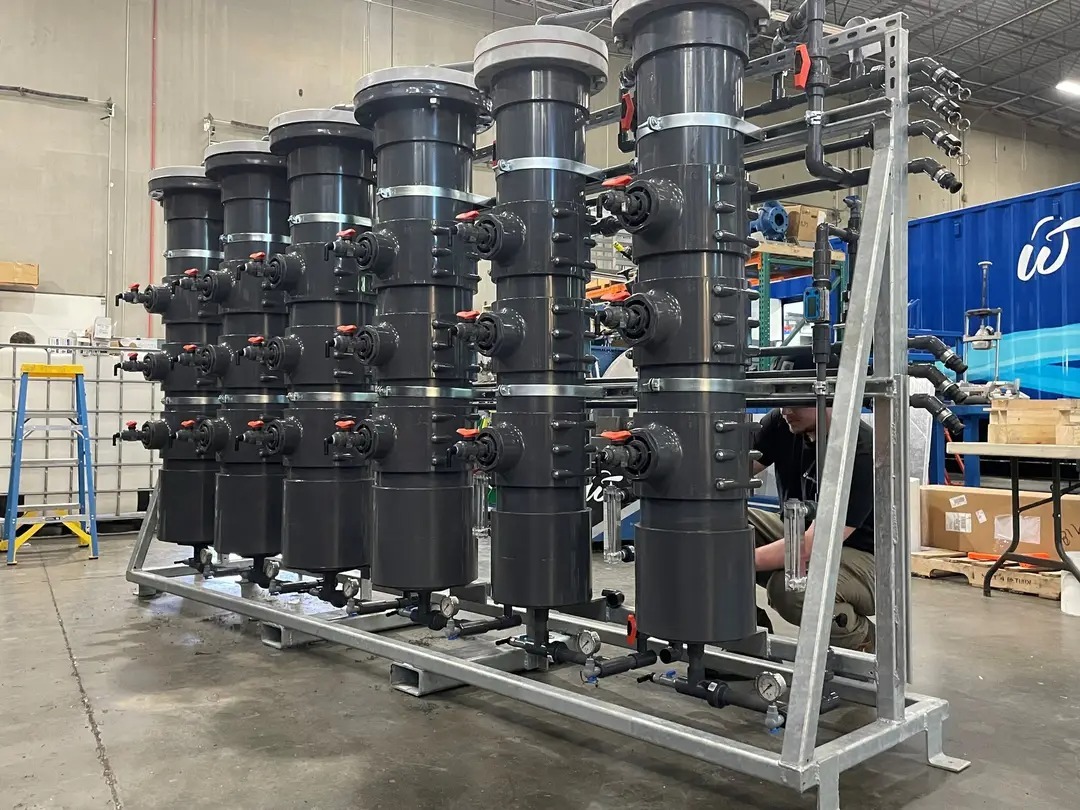

Reusing a 20' container from a previous pilot program, I removed components that were not needed and utilized existing facilities. The container was then to be filled with all new assemblies that I designed.
